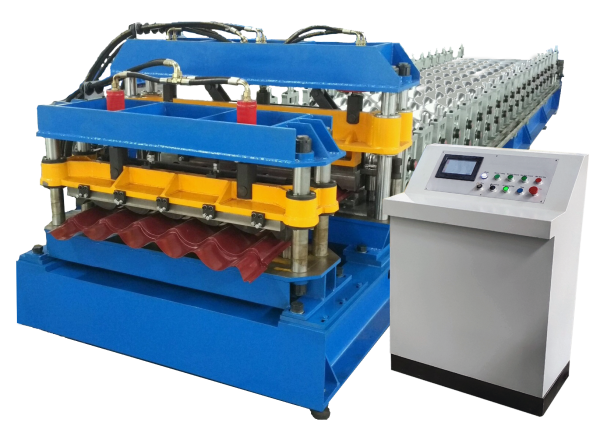

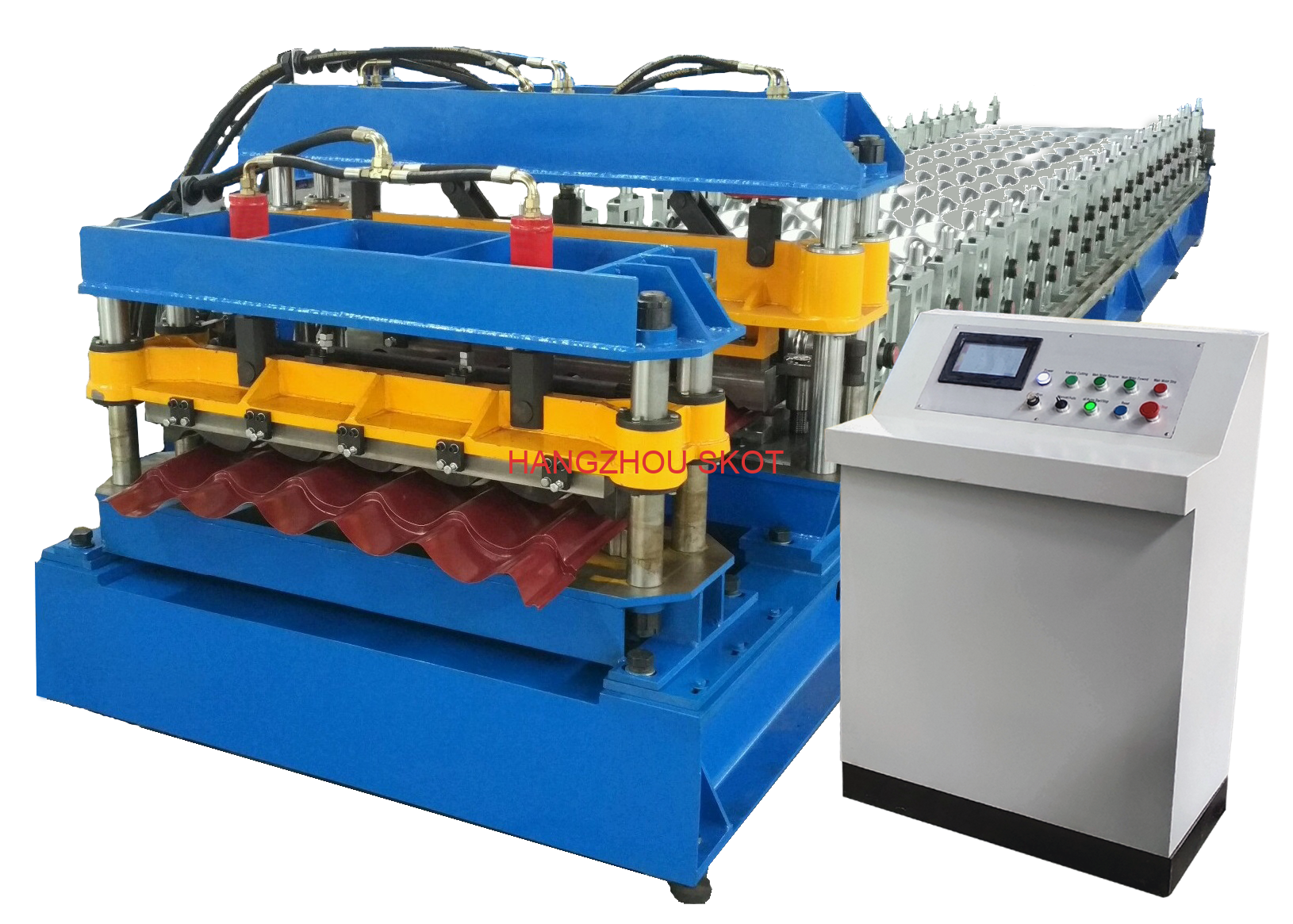

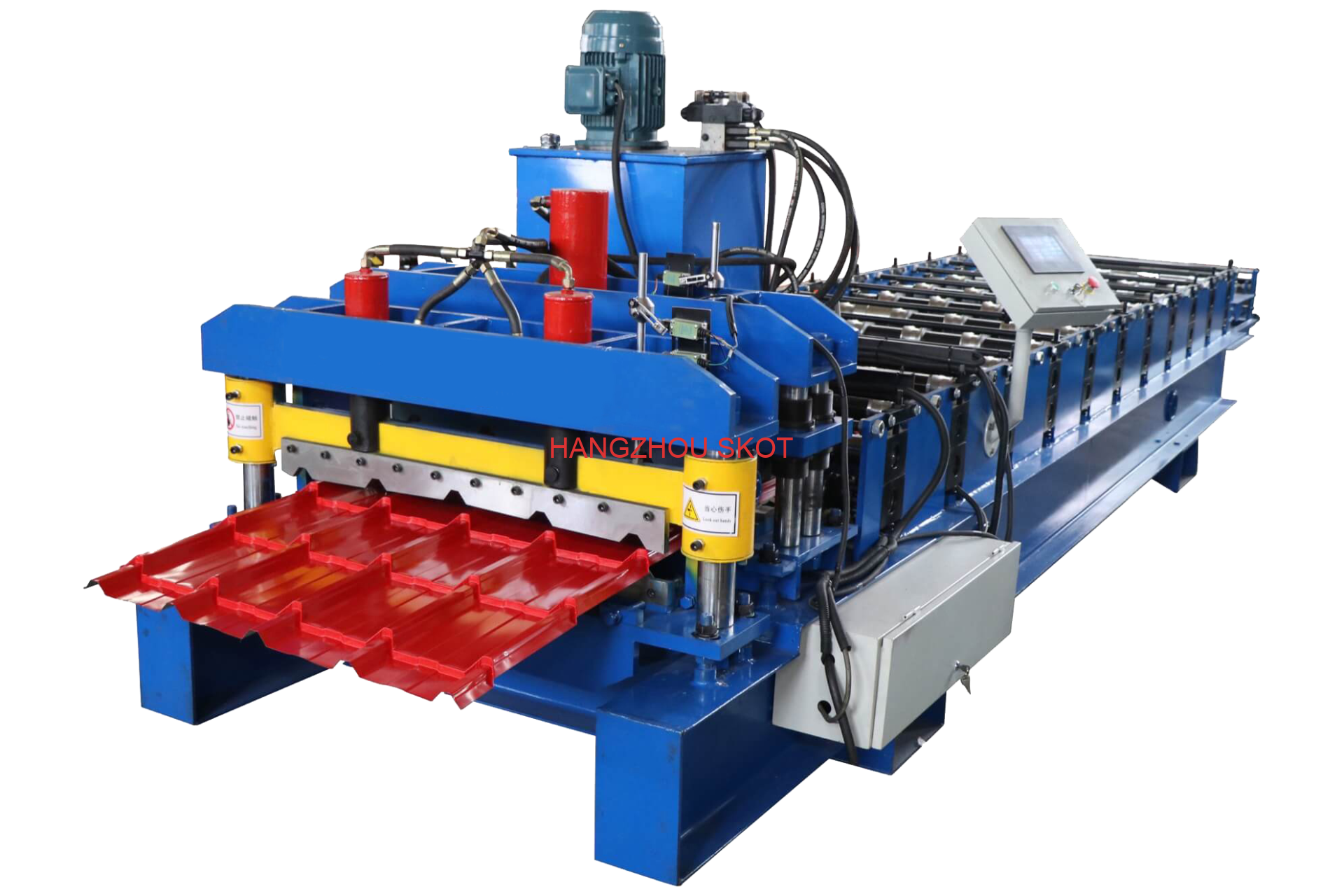

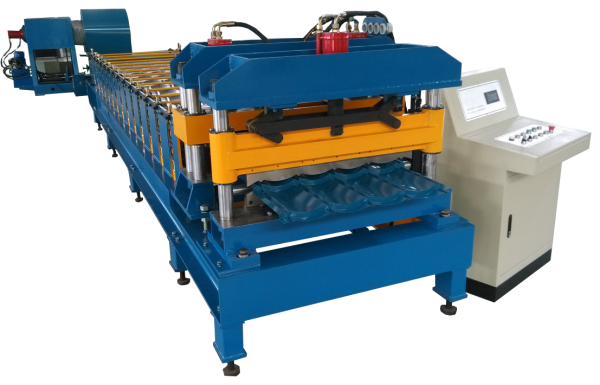

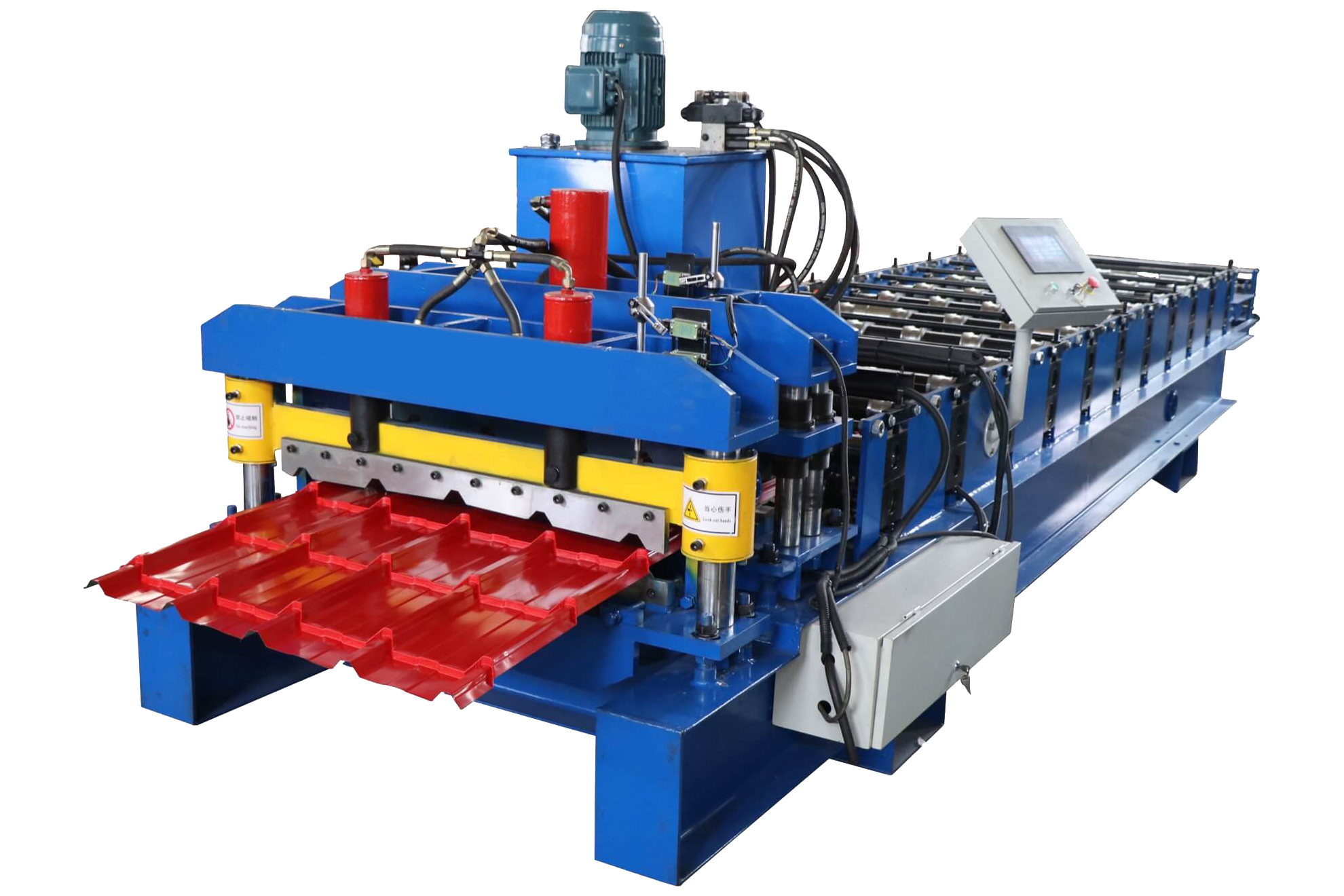

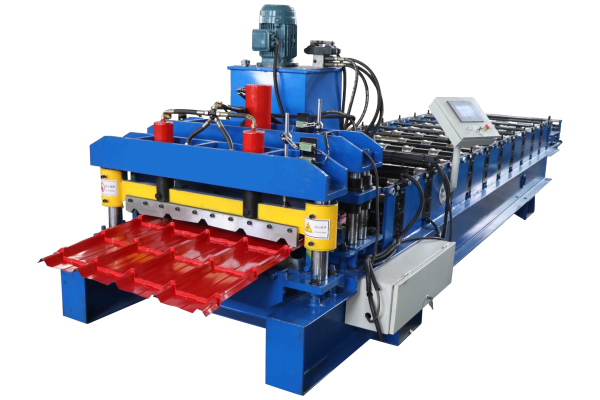

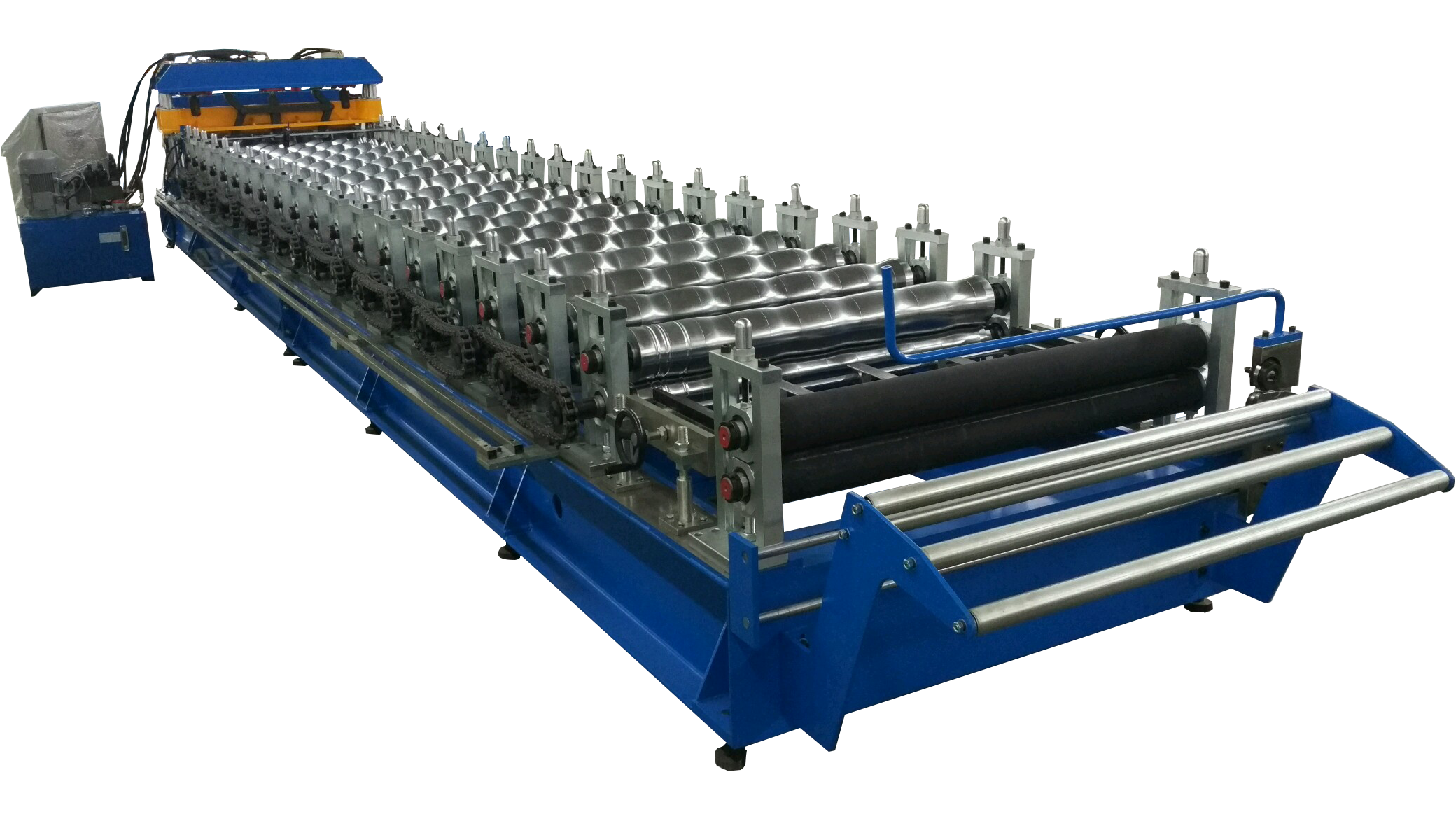

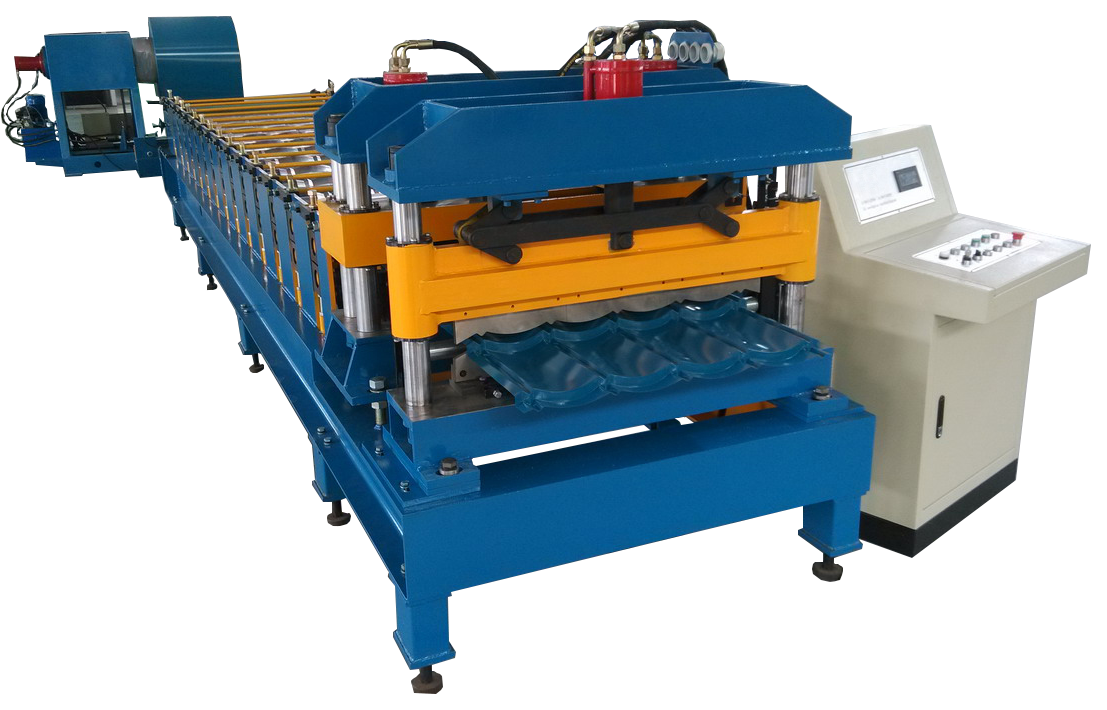

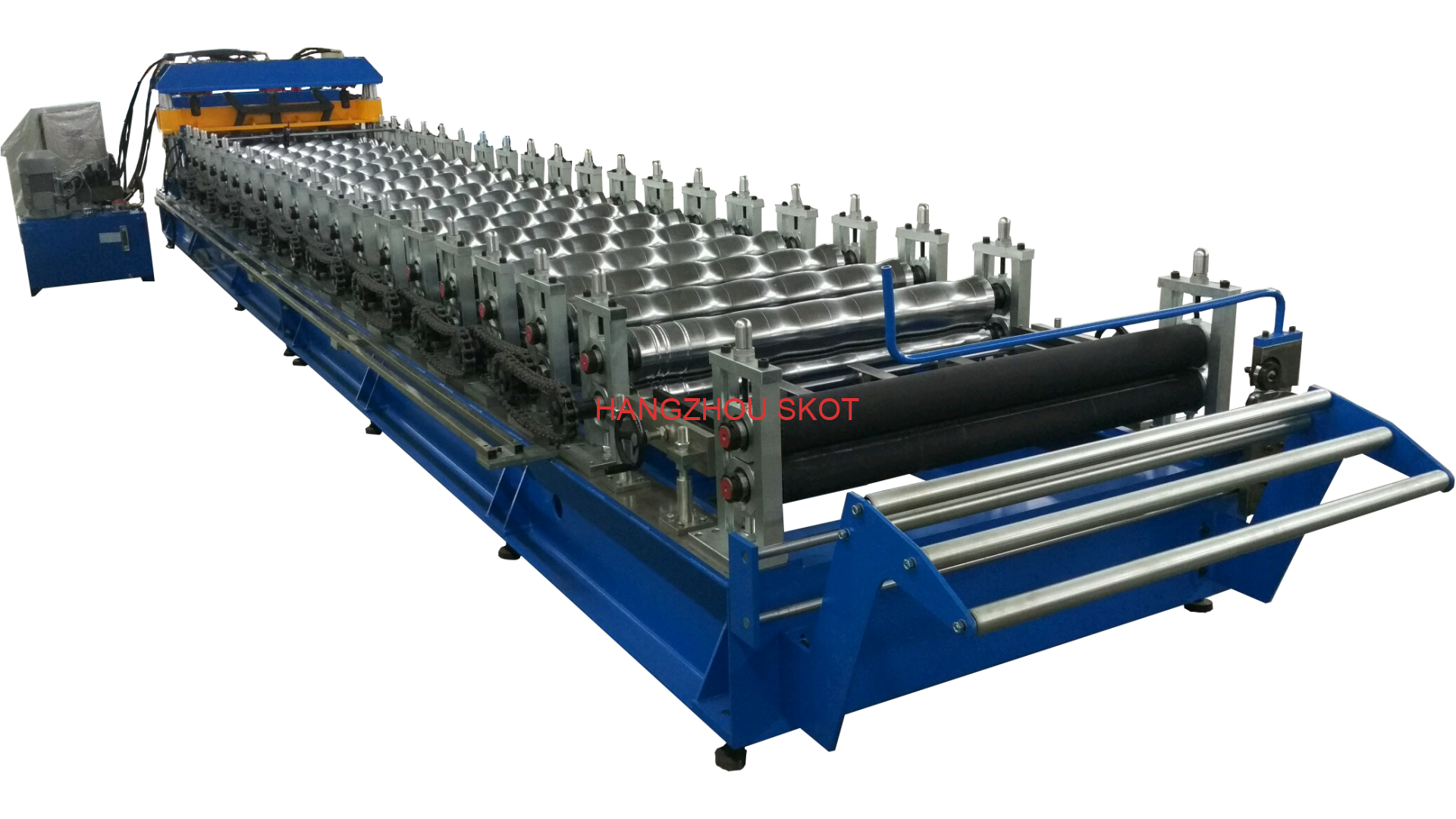

TILE EFFECT SHEET ROLL FORMER
Product description:
Our equipment is manufactured based on top technology and experiences, and the Roof Panel Producing Line has high durability and convenient management. It enables to manufacture the products of world’s best grade designing various wave forms exquisitely to meet customers’ requirement. The trapezoidal and corrugated metal sheets prove the high quality degree reached by the roll forming systems according to the international standard. Here, you can analyze the data profile of the main products manufactured by our machinery.
Our equipment is manufactured based on top technology and experiences, and the Roof Panel Producing Line has high durability and convenient management. It enables to manufacture the products of world’s best grade designing various wave forms exquisitely to meet customers’ requirement. The trapezoidal and corrugated metal sheets prove the high quality degree reached by the roll forming systems according to the international standard. Here, you can analyze the data profile of the main products manufactured by our machinery.
Our equipment is manufactured based on top technology and experiences, and the Roof Panel Producing Line has high durability and convenient management. It enables to manufacture the products of world’s best grade designing various wave forms exquisitely to meet customers’ requirement.
The Roll forming machine for roof tile, is also can produce a variety of elegant and sophisticated style, metal tile panels and metal shingle tiles, molded panel lines and raised the efficiency of the equipment and to produce normal metal tile roof panels as well as panels.
* Main Technical Parameters
| Material thickness (mm) | 0.4~0.6mm |
| Material yield stress (Mpa) | 230~300 Mpa |
| Max. forming speed (m/min) | 2~3m/min.; 4~6m/min. |
| Roller material | 45# steel with chrome treatment |
| Roller driven type | chain transmission; gear box drive |
| Controller & operation | PLC & touch screen and button |
| Hydraulic system pressure (Mpa) | 12 |
| Hydraulic station motor power (Kw) | 5.5 kw |
| Main motor power (Kw) | 5.5~7.5 kw |
| Total weight of machine | 6~8 tons |
* Process Sketch
Uncoiling the sheet ⇨ Material feeding ⇨Roll forming ⇨ Measure the length ⇨ Step Pressing ⇨ Cutting the panel ⇨ Panels running out to the supporter (optional: automatic stacker).
